A great tool I've discovered recently is the Failed Request Tracing Tool is IIS. It's a great way to see why your request failed.
I cover this and other IIS Administration topics in my IIS Administration Fundamentals course at Pluralsight. Check it out!
- Getting a 500 error?
- Getting a permission denied and don't know where it's being denied?
- Getting an error that doesn't show up in the logs?
Each of these are good candidates for this tool. This captures data right when the server gets hit. These are activities that happen right at the front, even before they can be logged.
In your IIS Manager, select your website. In the Actions panel under Manage Web Site click "Failed Request Tracing.."
In the next screen, you'll enable it, and click OK.
Next, find the "Failed Request Tracing Rules" icon, and click it:
In the next screen, we'll add a rule. Right click in the open area and select "Add"

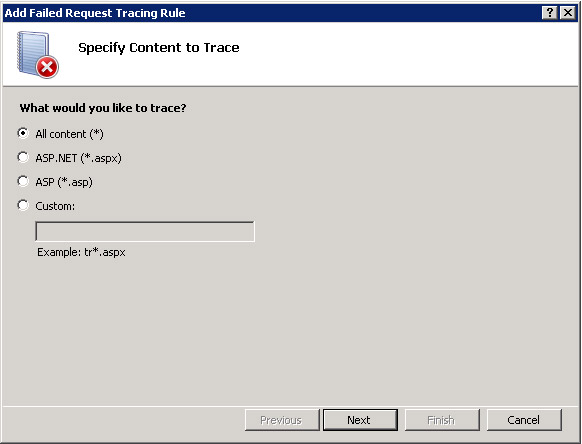

Select the content you'd like to trace:
On this screen, type in 400-999 to capture the full range of errors
Select your trace providers (I usually select all of them)
Then, make a request to your web site (either through browser, ajax, etc)
Next in your inetpub folder under logs, you'll see a new FaildReqLogFiles folder. In there will be generated folders. Select the latest one.
In here you'll see a set of xml files for each individual request.
Double click to open it up, and you'll see very detailed information. In this case it shows I have a certificate error, that is not explained on the error page or the error log, but I've found it here and can move on.
And that's it! Make sure to turn it off once you've solved your problem.
While IIS admins have probably been using this for years, it's a helpful too for developers as well, especially ones who work on implementation as well as development.
Let me know in the comments what you think.
- Jeremy
